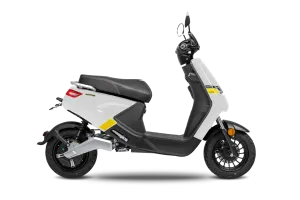

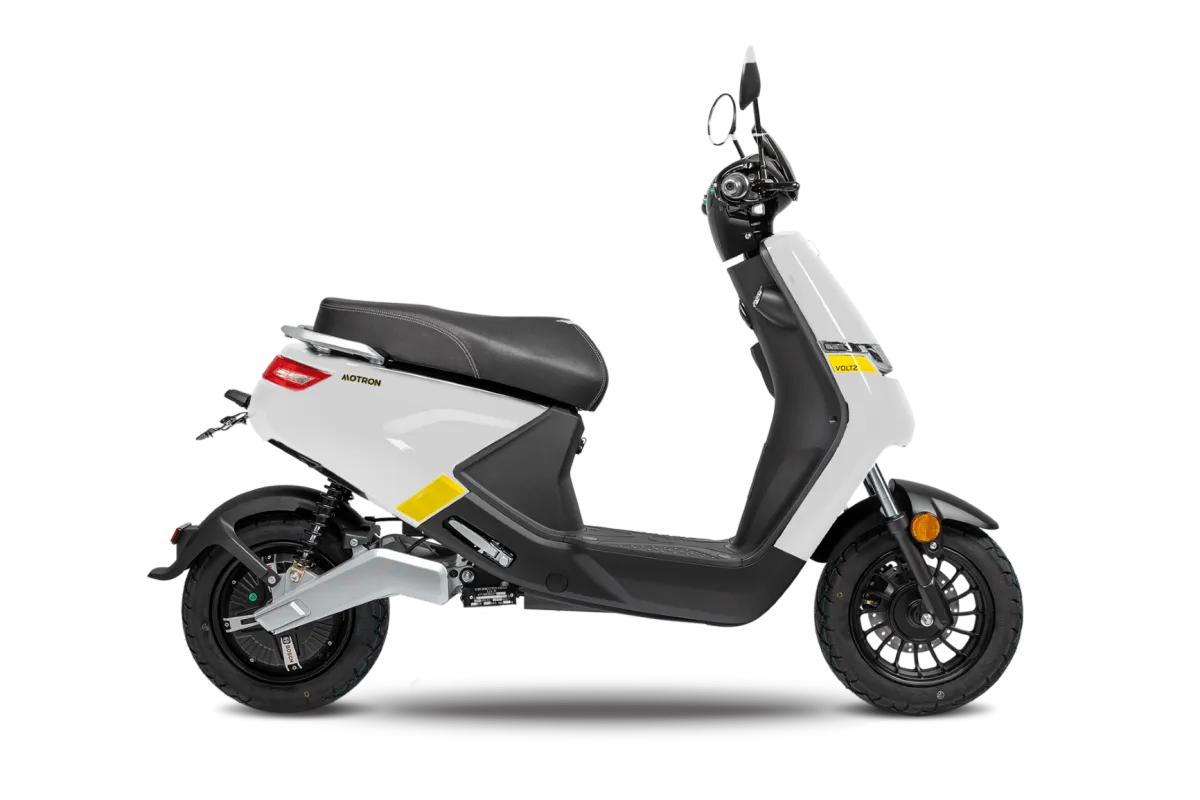

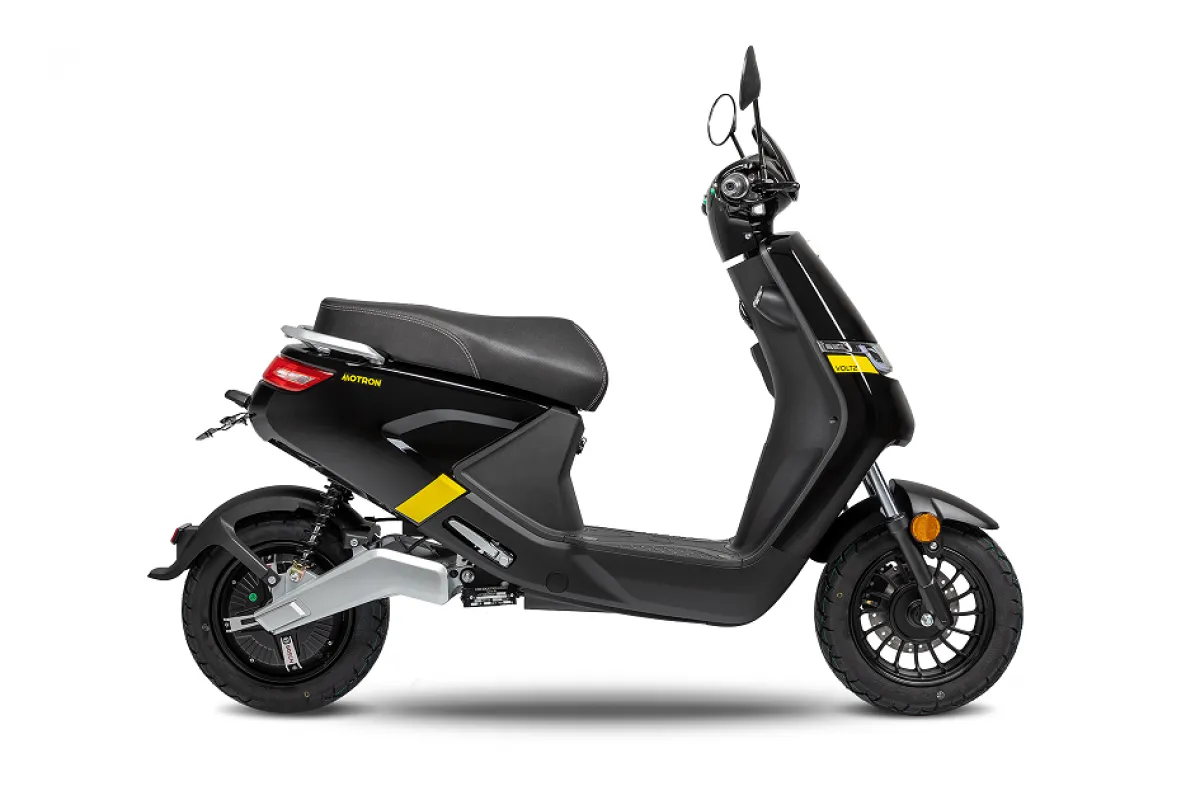

Packing a 2000W Bosch motor and removable Samsung battery cells, the Voltz makes sure you never have to rely on the bus again. With a 49 km range, enough to cut any city down to size, your urban adventures can take as many twists and turns as you want.
Engine
Type
Brushless 3-phase DC electric motor
Motor (BOSCH)
Wheel hub motor
Nominal voltage
48 V
Nominal power
2,0 kW @ 400 min
Maximum torque
47,5 Nm @ 400 min
Power stages
3
Battery
Type
Lithium-Ion with Samsung Cells (removable)
Number of batteries
1
Nominal voltage
48 V
Nominal capacity
26 Ah
Capacity
1248 Wh
Chassis
Front rim
MT2.15 x 10
Rear rim
MT2.15 x 10
Front tire
3.00-10
Rear tire
3.00-10
Front suspension
Telescopic fork
Rear suspension
Swingarm with double shock absorber
Front brake
Hydraulic disc brake, brake disc Ø 180 mm
Rear brake
Mechanical drum brake, brake drum Ø 110 mm
Dimensions & Mass
Length
1690 mm
Width
675 mm
Height
1140 mm
Number of seating positions
2
Kerb weight (without battery/-ies)
55 kg
Weight of battery/-ies
9 kg
Mass in running order
64 kg
Permissible maximum weight
224 kg
Driving performance
Top speed
45 km/h
Range
49 km
Energy consumption
30 Wh/km
Gradability
15%
